Troffer 2X4 40W 125lm/W 5000lm 2G Series
Troffer 2X4 40W 125lm/W 5000lm 2G Series
Troffer 2X4 40W 125lm/W 5000lm 2G Series
Troffer 2X4 40W 125lm/W 5000lm 2G Series
Troffer 2X4 40W 125lm/W 5000lm 2G Series
Troffer 2X4 40W 125lm/W 5000lm 2G Series
Troffer 2X4 40W 125lm/W 5000lm 2G Series
Troffer 2X4 40W 125lm/W 5000lm 2G Series
Troffer 2X4 40W 125lm/W 5000lm 2G Series

Troffer 2X4 40W 125lm/W 5000lm 2G Series

Model NO.
EDI-TFA24-40W-D-P
Price:
US $ 23.00-25.00 / pieces
Delivery:
EXW
Minimum order quantity:
100 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
SZ Of China
Stock Time:
30 Days
EDIPAI LED Troffer 2X4 40W 125lm/W 5000lm 0-10V Dimming 5-Years Warranty 2G Series
Quantity:
① Product Features
1.Smooth and comfortable light, low glare, flicker free, Ra>80, R9>0.
2.CCT:3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K.
3.High lighting efficiency 125lm/W, Clear Lens 130lm/W.
4.High quality driver, input voltage AC100-277V, High efficiency>87%, PF>0.9, THD<20%.
5.3-to-1 Dimming interface 0-10V/PWM / Resistor signal.
6.UL、CUL、FCC、DLC Premium Certificate.
7.Mainly used in commercial lighting places,such as office,factory and supermarket.
8.Lifespan>50,000 hours & 5 years warranty.

②Product Dimension

Model

L×W×H (inch)

EDI-TFA24-25W-D-P
EDI-TFA24-30W-D-P
EDI-TFA24-40W-D-P
EDI-TFA24-50W-D-P

47.75"x 23.74"x 1.85"

③Specification

SizePart No.Power

Luminous

Flux

Luminous

Efficacy

Input

Voltage

CCT

Viewing

Angle

RaPFWarranty
2x4ftEDI-TFA24-25W-D-P25W3125lm125lm/WAC100-277V

3000K

4000K

5000K

>140°>80>0.95 Years
EDI-TFA24-30W-D-P30W3750lm125lm/W
EDI-TFA24-40W-D-P40W5000lm125lm/W
EDI-TFA24-50W-D-P50W6250lm125lm/W

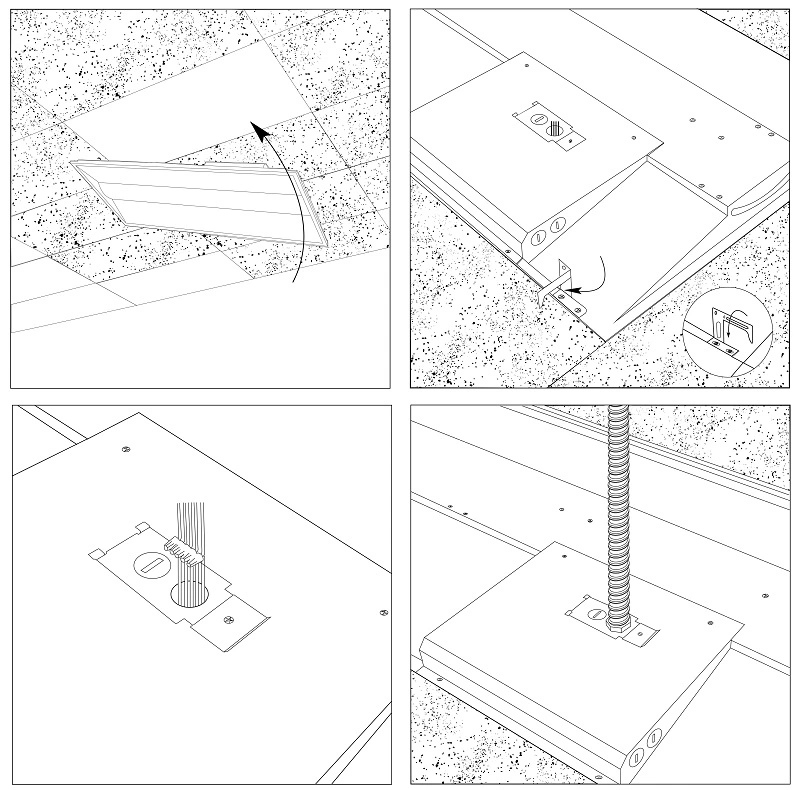

④Installation

⑤Packing / weight

Part NO.

Outer box

(L*W*H)

Qty/Ctn

(pcs)

G.W/Ctn

(lbs)

EDI-TFA24-25W-D-P

EDI-TFA24-30W-D-P

EDI-TFA24-40W-D-P

EDI-TFA24-50W-D-P

49.5”*6.5”*26”

1257*165*658 mm

231.8

⑥Package Diagram

⑦Warning

* Make sure the distances between live part and metal part of LED troffer can satisfy reinforced or double insulation.
* The luminaire should only be installed by a qualified electrician.
* Before installation and maintenance of the LED troffer, please disconnect the power to prevent electric shock.
* Before installation and maintenance, LED troffer must be operated by professional and technical personnel, non-professionals do not to remove the light .
* The LED troffer must be installed in an appropriate environment to work. In harsh environments may shorten the life or even damage the light .
* For type Y attachments:If the external flexible cable or cord of this luminaire is damaged,it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
