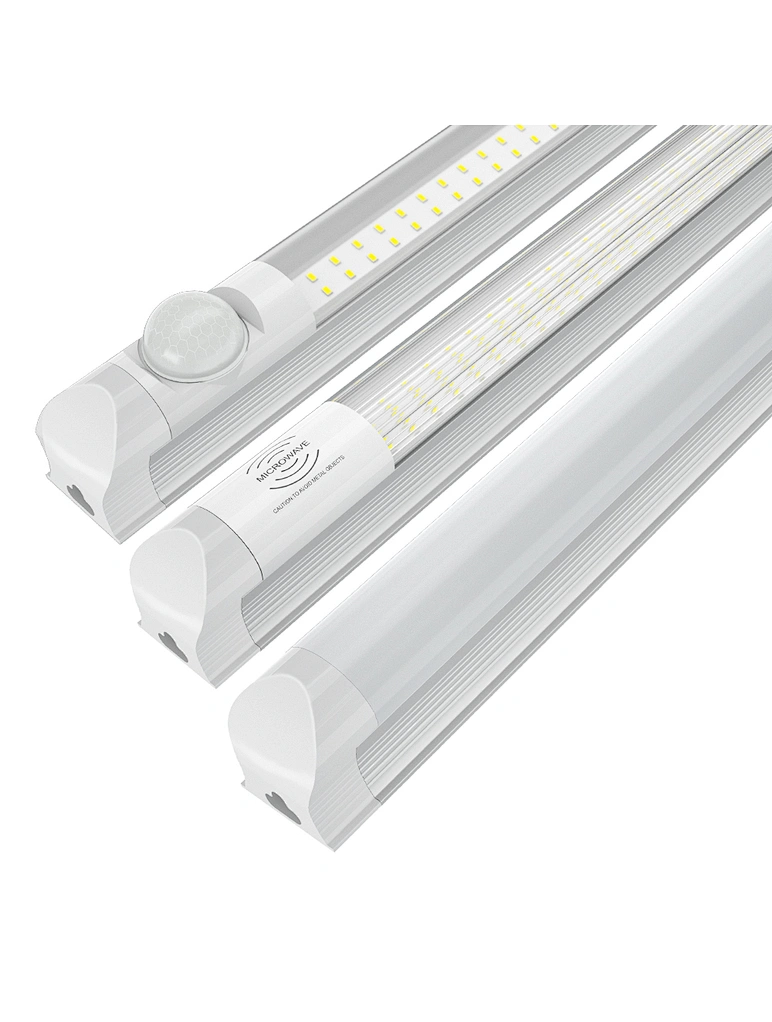

Smart APP Linear Ambient 2ft 20W
Smart APP Linear Ambient 2ft 20W
Smart APP Linear Ambient 2ft 20W
Smart APP Linear Ambient 2ft 20W

Smart APP Linear Ambient 2ft 20W

Model NO.:
EDI-LS2G-2FT20W
Price:
US $ 10.00-12.00 / pieces
Delivery:
EXW
Minimum order quantity:
500 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
China
Stock Time:
30 Days
Smart APP Linear Ambient 2ft 20W 130lm/W 2600lm 5.8G Motion Sensor Warranty 5-Years

Product Features

1. Smart Control -- 2.4G wireless Smart APP Dimming&Switch control

2. High Efficacy -- design delivers up to 130-200 LPW

3. Expected Life— Projected life of at least 50,000 hours.

4. Construction — Housing constructed of code-gauge, die-formed, cold-rolled steel.

5. Lens — Frosted, impact-resistant acrylic.

6.  Electrical — 100–277 VAC Input, 50/60 Hz.

7. Driver — High-performance driver features over-voltage, over-current, and short-circuit protection.

8. Certification — ETL Listed. DLC Premium.

9. Warranty — Limited 5-year warranty.

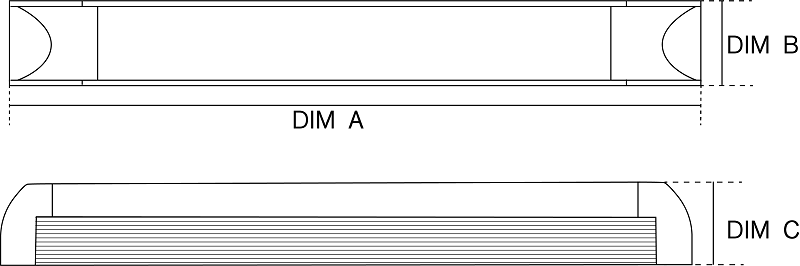

②Dimensions

Length

DIM A

DIM B

DIM C

2FT

21.2 in

1.2 in

1.4 in

Physical Specifications

LS2G-
2FT6W

LS2G-
2FT6W
ND

LS2G-
2FT10W
LS2G-
2FT10W ND
LS2G-
2FT20W
LS2G-
2FT20W ND
LS2G-
2FT26W
LS2G-
2FT26W ND

Key

parameters

Wattage

6W±5%

6W±5%

10W±5%

10W±5%

20W±5%

20W±5%26W±5%26W±5%

Efficacy

130lm/W

130lm/W130lm/W130lm/W

130lm/W

130lm/W

130lm/W

130lm/W

Lumens

780lm

780lm

1300lm

1300lm

2600lm

2600lm

3380lm

3380lm

DLC Primary

-

---

Linear Ambient

Linear Ambient

-

-

Dimming

Smart APP

Not

Smart APP

Not

Smart APP

Not

Smart APP

Not

Accessories

Integrated Occpancy Motion Sensor

Photo metric

CCT

3000k-6500K

SDCM

≤6

Beam Angle

140°

Ra

>80

R9

>0

Duv

≤0.006

Electrical

Wattage

6W±5%

6W±5%

10W±5%

10W±5%

20W±5%

20W±5%26W±5%26W±5%

Current

Max 0.06A

Max 0.06A

Max 0.10A

Max 0.10A

Max 0.20A

Max 0.20AMax 0.26AMax 0.26A

Rated Voltage

100-277 ACV

Frequency

50/60Hz

THD

≤20%

Surge Protection

2KV

Power Factor

≥0.9

Lifetime

L70

≥50000

L90

≥36000

Warranty

5 Years

Operation

Start Time

≤1S

Operating Temp

-4℉+113℉

Storage Temp

-22℉+149℉

Housing/Case

Aluminum

Optical-Lens

PC Frosted /Clear

Environment

Indoor

Ingress Protection

IP20

Certifications

Safety

ETL

③ Accessories

Integrated 5.8G Occpancy Motion Sensor

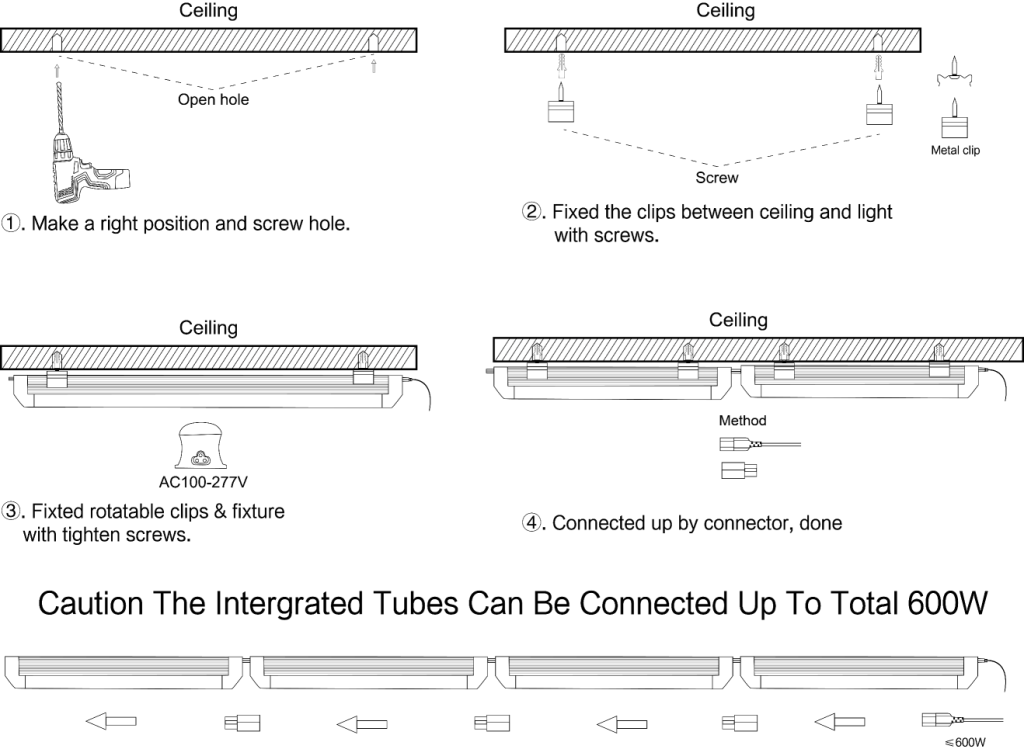

Easy Installation

Important

Read this instruction carefully before installation. Keep it for further reference.

Make electrical and grounded connections in accordance with the national electrical code and any applicable code. Always turn off the power supply before installation.

This product must be installed in accordance with the applicable installation code by a qualified electrician who is familiar with the construction and operation of the product and the hazards involved.

⑤Packing information

Length

Qty/Ctn

(pcs)

Outer box

G.W/Ctn

2ft25

580*185*205 mm

22.8*7.3*8.0 in

5.8KG

12.8LBS

Warranty

  This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering or removal of the Q.C. and/or date label, usage in improper working environment or installation not according to the current edition of the National Electric Code. Should this product fail during the warranty period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Manufacturer does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Manufacturer reserves the right to alter specifications without prior notice.
