T8 LED TUBE Light 4ft 9W Type AB AL&PC 180lm/W 1620lm

T8 LED TUBE Light 4ft 9W Type AB AL&PC 180lm/W 1620lm
EDI-T84F09-AB G1 TRIAC
Certification: ETL Type A+B & DLC 5.1
Input Voltage: 100-277 ACV
Powers: 9W PF>0.9 THD<20%
Luminous Efficiency: 180lm/W
Lumens: 1620lm
Housing: AL+PC
Warranty: 5 Years
CCT: 3000K/4000K/5000K/6500K Options
Quantity

Product Feature

•All IN One: 3 Powers & 3 CCT Tunable Options.

• Installation:Plug & Play Compatible ElectronicBallast & ballast bypass, Direct wire,Single-End or Double-End Input.

• Construction: Aluminum case and PC lens, Standard colors are Clear and Frosted.

• LED System:LED system with a life rating of ≥50,000 hours at L70 @25°C. Luminousefficacy>130lm/W.

• Electrical: 100V-277VAC.PF≥0.9 and THD≤20%.

• Certification:ETL Listed. DLC SSL 5.1 Standard.

• Warranty:Limited 5-YearWarranty.

Dimension

ItemL×W×H (inch)
2FT24” x 1.12” x 1.28”
4FT48” x 1.12” x 1.28”

Specifications

EDI-T84F09-AB G1

Key
parameters

Length

4ft / 48"

Voltage

100-277 ACV

Wattage

9W

Efficacy

180 lm/W

Lumens

1620 lm

Base

G13

Control
Feature

Dimming Status

Continuous Dimming to 10% or below

Communication
Protocol

0-10V Wired Communication Protocol

metric

CCT

3000K-6500K

SDCM

≤6

Beam Aagle

120°

Ra

>80 (>97 Option)

R9

>0

Duv

≤0.006

Electrical

Wattage

9W

Current

Max 0.09A

Rated Voltage

100-277 ACV

Frequency

50/60Hz

THD

20%

Surge Protection

2KV

Power Factor

≥0.9

Lifetime

L70

≥50,000 Hours

L90

≥36,000 Hours

Warranty

5 Years

Operation

Start Time

≤1S

Operating Temp

-4℉+113℉

Storage Temp

-22℉+149℉

Housing/Case

AL / PC

Environment

Indoor

Ingress Protection

IP20

Certifications

Safety

ETL

DLC

DLC 5.1 Standard

Material

Housing

Aluminum

Optical-Lens

PC Frosted / Clear

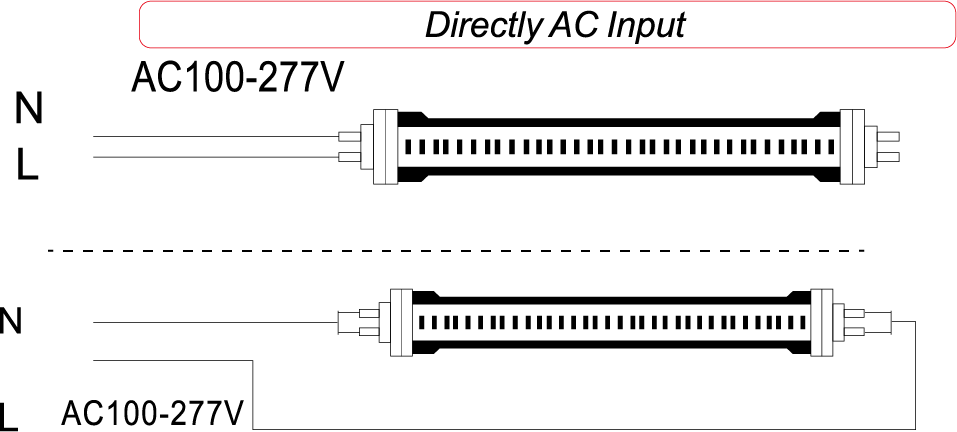

Wiring Diagram

Packing / weight

SizeOuter box
(L*W*H)		Qty/Ctn
(pcs)		G.W/Ctn
(lbs)		Container
20GP(28㎡)		Container
40HQ(68㎡)		Container
45HQ(78㎡)
2ft24.6*7.28*7.28 in
625*185*185 mm		259.327000 pcs78000 pcs90000 pcs
4ft48.6*7.28*7.28 in
1235*185*185 mm		2516.01327000 pcs39600 pcs45000 pcs

Warranty

This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering or removal of the Q.C. and/or date label, usage in improper working environment or installation not according to the current edition of the National Electric Code. Should this product fail during the warranty period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Manufacturer does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Manufacturer reserves the right to alter specifications without prior notice.

Note

1.The installation and maintenance must be completed by electricians or professionals.
2.Please cut off the power before installation and maintenance.
3.The thermally insulating material is not allowed to cover the fixture.
4.Please keep away from the corrosive substance, and keep the fixture dry and clean.
5.Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.
