LEDT8 Tube Lights 4ft 10W Type AB NANO 170lm/W 1700lm EDIPAI LTD

LEDT8 Tube Lights 4ft 10W Type AB NANO 170lm/W 1700lm

Model NO. EDI-T84F10-AB G5 TRIAC

Certification: ETL Type A+B & DLC 5.1
Input Voltage: 100-277 ACV
Powers: 10W PF>0.9 THD<20%
Luminous Efficiency: 170lm/W
Lumens: 1700lm
Housing: NANO
Warranty: 5 Years
CCT: 3000K/4000K/5000K/6500K Options

Quantity

Product Feature

• Installation:Plug & Play Compatible ElectronicBallast & Ballastbypass, Direct wire,Single-End or Double-End Input.

•Material:Frosted Lens and Nano Plastic Housing for durability and excellent heat dissipation.

• LED System:LED system with a life rating of ≥50,000 hours atL70 @25°C. Luminousefficacy>130lm/W.

• Electrical: 100V-277 VAC.PF≥0.9 and THD≤20%.

• Certification:ETL Listed. DLC SSL5.1 Standard.

• Warranty:Limited 5-YearWarranty.

Dimension

Item	L×W×H (inch)
2FT	24” x 1.12” x 1.28”
4FT	48” x 1.12” x 1.28”

Specifications

		EDI-T84F10-AB G5
Key parameters	Length	4ft / 48"
	Voltage	100-277 ACV
	Wattage	10W
	Efficacy	170 lm/W
	Lumens	1700 lm
	Base	G13
Control Feature	Dimming Status	Continuous Dimming to 10% or below
	Communication Protocol	0-10V Wired Communication Protocol
Photo metric	CCT	3000K-6500K
	SDCM	≤6
	Beam Aagle	120°
	Ra	>80 (>97 Option)
	R9	>0
	Duv	≤0.006
Electrical	Wattage	10W
	Current	Max 0.10A
	Rated Voltage	100-277 ACV
	Frequency	50/60Hz
	THD	20%
	Surge Protection	2KV
	Power Factor	≥0.9
Lifetime	L70	≥50,000 Hours
	L90	≥36,000 Hours
	Warranty	5 Years
Operation	Start Time	≤1S
	Operating Temp	-4℉-104℉
	Storage Temp	-22℉-140℉
	Environment	Indoor
	Ingress Protection	IP20
Certifications	Safety	ETL
	DLC	DLC 5.1 Standard
Material	Housing	Nano material
	Optical-Lens	PC Frosted

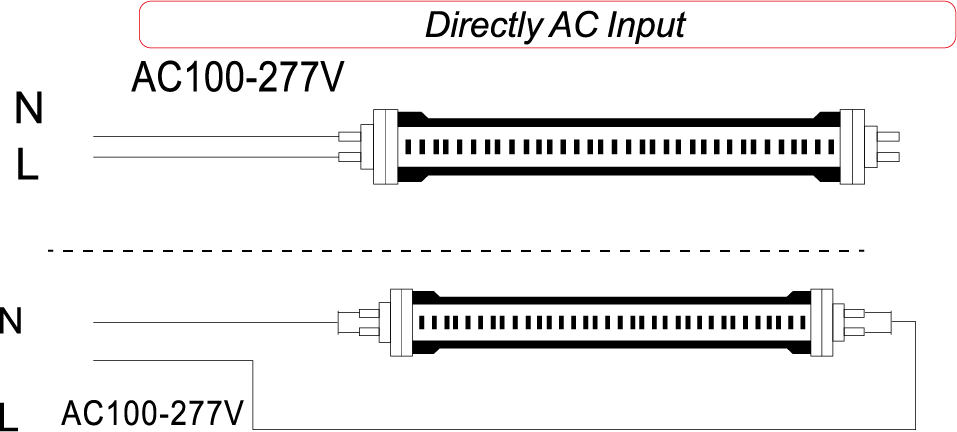

Wiring Diagram

Packing / weight

Size	Outer box (LWH)	Qty/Ctn (pcs)	G.W/Ctn (lbs)	Container 20GP(28㎡)	Container 40HQ(68㎡)	Container 45HQ(78㎡)
2ft	24.67.286.3 in 625185170 mm	25	6.0	29500 pcs	84500 pcs	96500 pcs
4ft	48.67.286.3 in 1235185170 mm	25	10.0	14000 pcs	42500 pcs	49000 pcs

Warranty

This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering or removal of the Q.C. and/or date label, usage in improper working environment or installation not according to the current edition of the National Electric Code. Should this product fail during the warranty period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Manufacturer does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Manufacturer reserves the right to alter specifications without prior notice.

Note

1.The installation and maintenance must be completed by electricians or professionals.

2.Please cut off the power before installation and maintenance.

3.The thermally insulating material is not allowed to cover the fixture.

4.Please keep away from the corrosive substance, and keep the fixture dry and clean.

5.Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.
