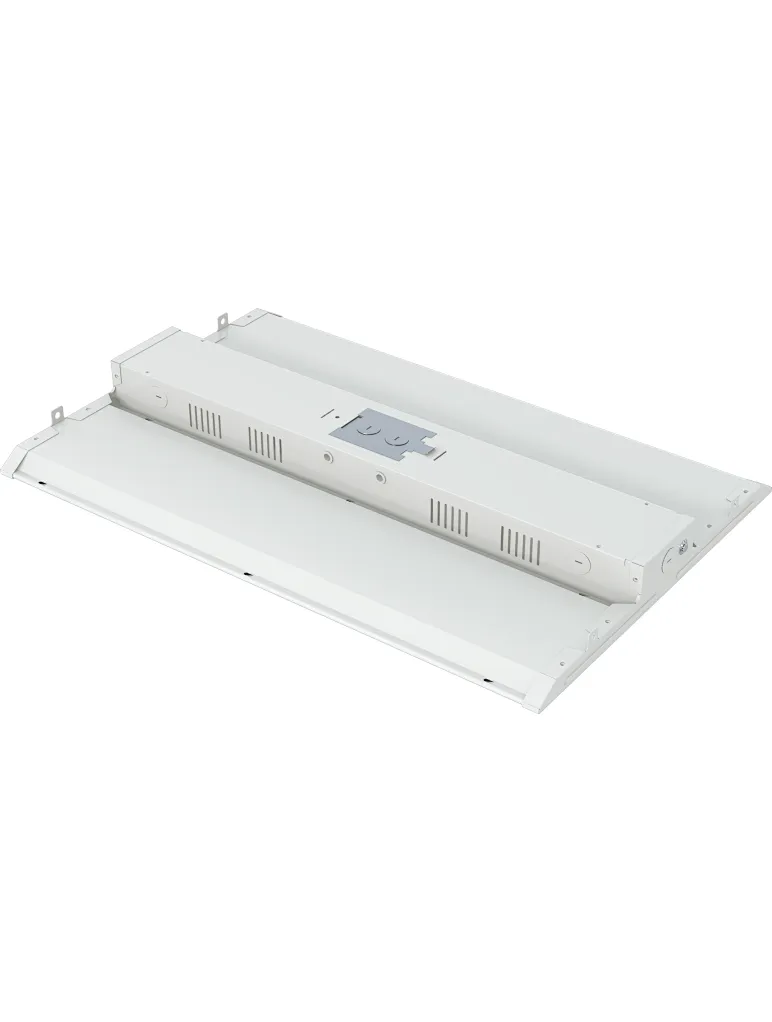

2ft 225W 150lm/W 33750lm GEN1

2ft 225W 150lm/W 33750lm GEN1
EDI-LHB2FT-225W G1
1
Certification: UL & DLC 5.1 Premim
Input Voltage: 120-277V, 120-347V
Powers: 225W
Efficiency: 150lm/W
Lumens: 33750lm
CCT: 3000K, 3500K, 4000K, 5000K, 6500K Options
Dimming: 0-10V
Warranty: 5 Years
Quantity
①Specifications


         Key
parameters
Dimension                  23.47"x15.7"x1.66"
Input Voltage120-277V  /  120-347V
Wattage 2250W
Efficacy150lm/w
Lumen33750lm
CertificationsSafety/DLCUL  &  DLC 5.1 Premium
Photo metricCCT3000K, 3500K, 4000K, 5000K, 6500K Options
SDCM≤6
Beam Angle120°
Ra>80
R9>0
Duv≤ 0.006
ElectricalWattage225W
CurrentMAX 2.25 A
Rated Voltage120-277V  /  120-347V
Frequency50/60Hz
THD≤ 20%
Surge Protection2KV
Power Factor≥ 0.9
LifetimeL70≥ 50000
L90≥ 36000
Warranty5 Years
MaterialHousingMetal Sheet Housing
LensPolystyrene Diffuser Lens
OperationStart Time≤ 1S
Operating Temp-4℉ -104℉
Storage Temp-22℉ -140℉
EnvironmentIndoor
Ingress ProtectionIP22 Rating

② Dimension

③ Installation method
(1) Chain Mounting
(2) Pendant Mounting
(3) Surface Mounting

④ Accessories

(1) Occupancy Sensor

Microwave Sensor



PIR Sensor

Operating Voltage
DC10.5-15V
DC10.5-15V
Detection Distance
Radius 9.84-22.96ft
Radius 9.84-19.68ft
Mounting Height
Max 49ft
Max 39.37ft
Detection Angle
30°-150°
＜120° Fresnel Lens
Setting methodRemote control
Sensitivity Setting
25%/50%/75%/100%
Holdtime
5s/30s/1min/3min/5min/10min/20min/30min
Standby Period
0s/10s/30s/1min/5min/10min/30min/60min/+∞
Standby Dimming
10%/20%/30%/50%
Daylight
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Daylight Priority
Daylight threshold is on 30Lux/50Lux/80Lux/120Lux;
Standby period is +∞；
Standby dimming level is on 10%/20%/30%
(2) Emergency Driver
Features
①UL Listed for US andCanada Self-testing
②Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation
③High output voltage
④Low energy consumption CEC compliance
⑤Constant output power
⑥Self-testing
⑦Battery:over temperature protection
Specifications
①Input Voltage:100~277Vac/347Vac 50/60Hz
②Input Current:100mA max.
③Input Power Rating:7W max.
③Output Voltage:25V~230Vdc
④Emergency Power:15W/30W max.
⑤Recharge Time:24Hrs
⑥Discharge Time: ≥1.5H
⑦Ambient Temp:Li-ion:32~122°F(0~50°C)  Ni-MH: 41~149°F(5~65°C)
⑧Surge Protection:Line-Neutral 3KV
