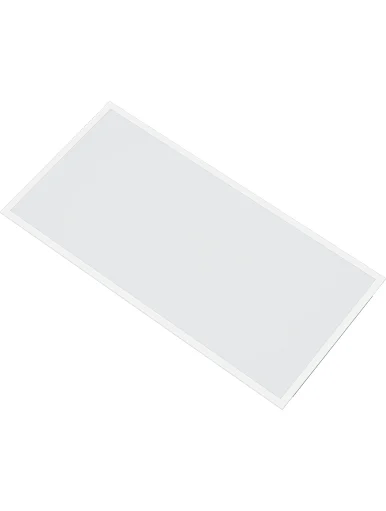

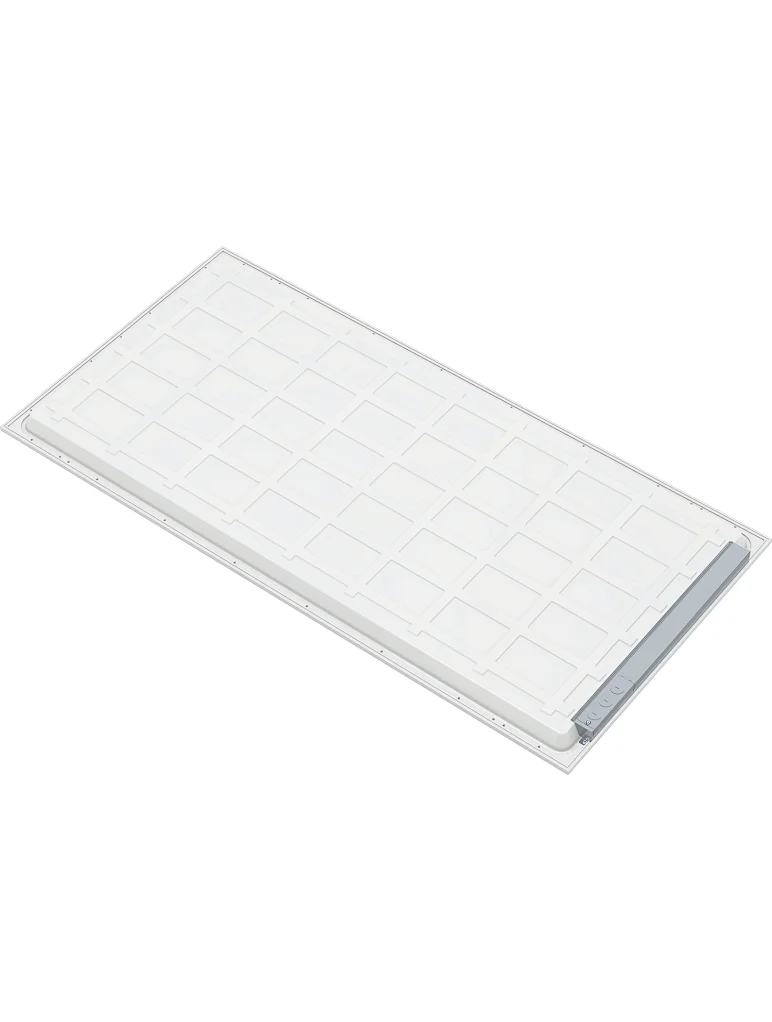

2x4 23w/30w/40w & 3CCT Selectable 140lm/W

2x4 23w/30w/40w & 3CCT Selectable 140lm/W
EDI-PAN24-23/30/40W-xxK
1
Certification: UL & DLC 5.1 Premim
Input Voltage: 120-277V, 120-347V
Powers: 23W/30W/40W Selectable
Efficiency: 140lm/W
Lumens: 5600lm
CCT: 3500k/4000k/5000k, 3000k/4000k/5000k, 4000k/5000k/6500k Options
Dimming: 0-10V
Warranty: 5 Years
Quantity

         Key
parameters
SIZE                  2X4
Input Voltage120-277V  /  120-347V
Wattage 23W/30W/40W Selectable
Efficacy140lm/w
Lumen5600lm
CertificationsSafety/DLCUL  &  DLC 5.1 Premium
Photo metricCCT3500k/4000k/5000k, 3000k/4000k/5000k, 4000k/5000k/6500k Selectable
SDCM≤6
Beam Angle120°
Ra>80
R9>0
Duv≤ 0.006
ElectricalWattage 23W/30W/40W Selectable
CurrentMAX 0.4A
Rated Voltage120-277V  /  120-347V
Frequency50/60Hz
THD≤ 20%
Surge Protection2KV
Power Factor≥ 0.9
LifetimeL70≥ 50000
L90≥ 36000
Warranty5 Years
MaterialHousingMetal Sheet Housing
LensPolystyrene Diffuser Lens
OperationStart Time≤ 1S
Operating Temp-4℉ -104℉
Storage Temp-22℉ -140℉
EnvironmentIndoor
Ingress ProtectionIP22 Rating
