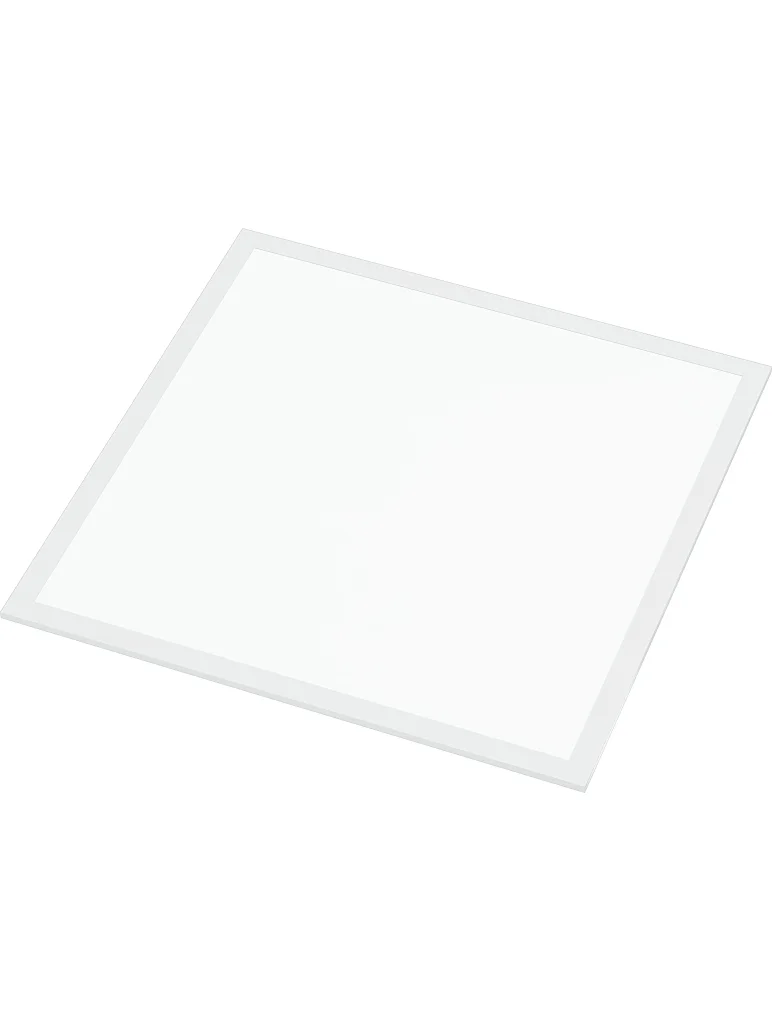

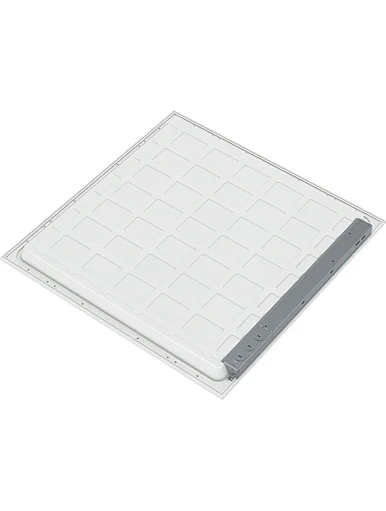

2x2 7 Power & 5CCT Selectable 140lm/W

2x2 7 Power & 5CCT Selectable 140lm/W
EDI-PAN22-15T50W-30/35/40/50/65K
Certification: UL & DLC 5.1 Premim
Input Voltage: 120-277V, 120-347V
Powers: 15W 20W 25W 30W 35W 40W 50W Selectable
Efficiency: 140lm/W
Lumens: 7000lm
CCT: 3000K/3500K/4000K/5000K/6500K Selectable
Dimming: 0-10V
Warranty: 5 Years
Quantity

         Key
parameters
SIZE                  2X2
Input Voltage120-277V  /  120-347V
Wattage15W 20W 25W 30W 35W 40W 50W Selectable
Efficacy140lm/w Optons
Lumen 7000lm
CertificationsSafety/DLCUL  &  DLC 5.1 Premium
Photo metricCCT3000K/3500K/4000K/5000K/6500K Selectable
SDCM≤6
Beam Angle120°
Ra>80
R9>0
Duv≤ 0.006
ElectricalWattage15W 20W 25W 30W 35W 40W 50W Selectable
CurrentMAX 0.5A
Rated Voltage120-277V  /  120-347V
Frequency50/60Hz
THD≤ 20%
Surge Protection2KV
Power Factor≥ 0.9
LifetimeL70≥ 50000
L90≥ 36000
Warranty5 Years
MaterialHousingMetal Sheet Housing
LensPolystyrene Diffuser Lens
OperationStart Time≤ 1S
Operating Temp-4 -104
Storage Temp-22 -140
EnvironmentIndoor
Ingress ProtectionIP22 Rating
