• Dimming: 0-10V dimming, DLC SSL 5.1 and NCL 4.0 standards.
• All IN One: 3 Powers & 3 CCT Tunable Options.
• Installation: Plug & Play Compatible Electronic Ballast & ballast bypass, Direct wire, Single-End or Double-End Input.
• Construction: Aluminum case and PC lens, Standard colors are white and diffuse.
• LED System: LED system with a life rating of ≥50,000 hours at L70 @25°C. Luminous efficacy >130 lm/W.
• Electrical: 100V-277 ACV. PF≥0.9 and THD≤20%.
• Certification: ETL Listed. DLC SSL5.1 Stander.
• Warranty: Limited 5-Year Warranty.

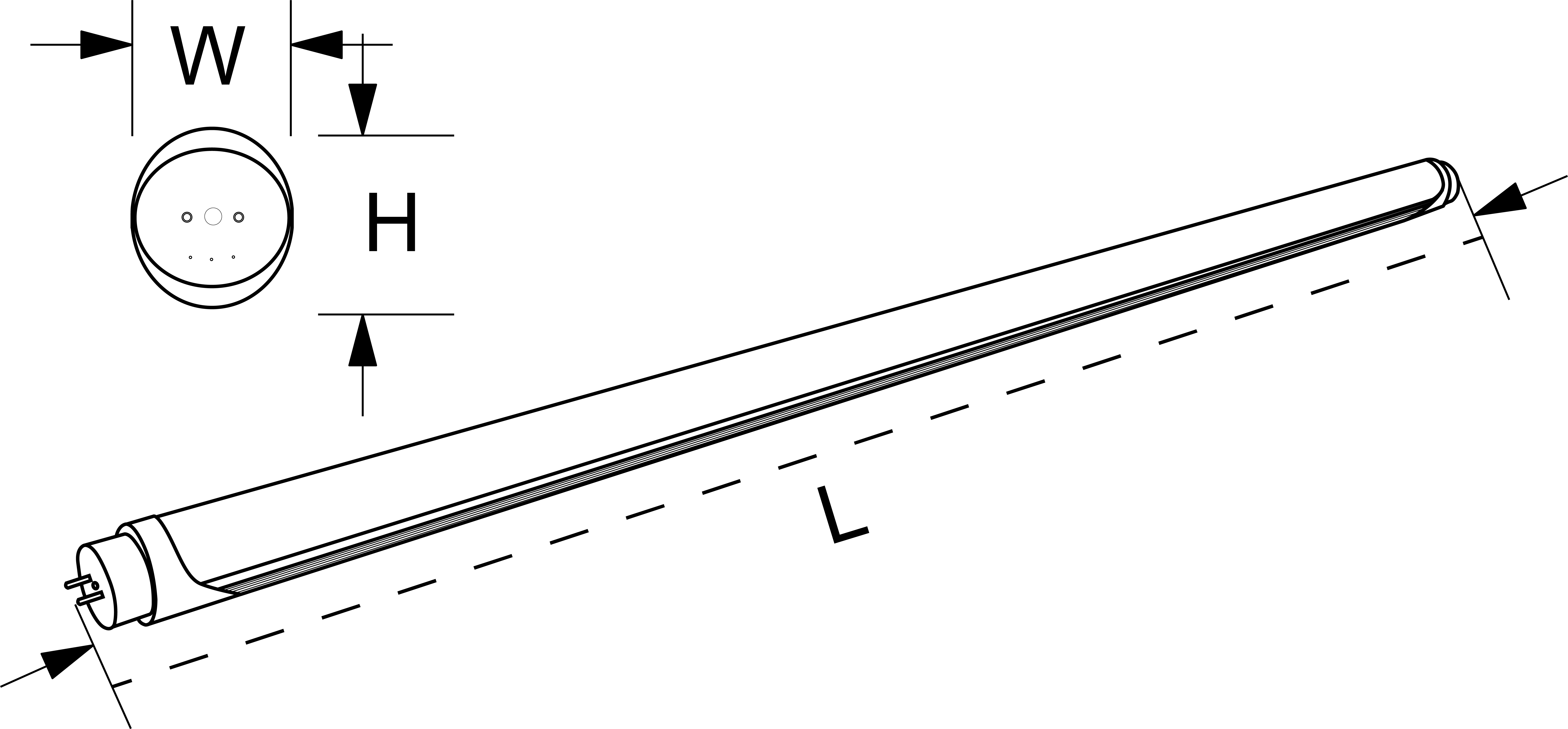

|2FT||24” x 1.12” x 1.28”|
|4FT||48” x 1.12” x 1.28”|
4ft / 48"
Continuous Dimming to 10% or below
0-10V Wired Communication Protocol
>80 (>97 Option)
DLC 5.1 Standard
PC Frosted / Clear
Packing / weight
|25||9.3||27000 pcs||78000 pcs||90000 pcs|
|25||16.0||1327000 pcs||39600 pcs||45000 pcs|
|This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering or removal of the Q.C. and/or date label, usage in improper working environment or installation not according to the current edition of the National Electric Code. Should this product fail during the warranty period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Manufacturer does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Manufacturer reserves the right to alter specifications without prior notice.|
|1.The installation and maintenance must be completed by electricians or professionals.|
2.Please cut off the power before installation and maintenance.
3.The thermally insulating material is not allowed to cover the fixture.
4.Please keep away from the corrosive substance, and keep the fixture dry and clean.
5.Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.
