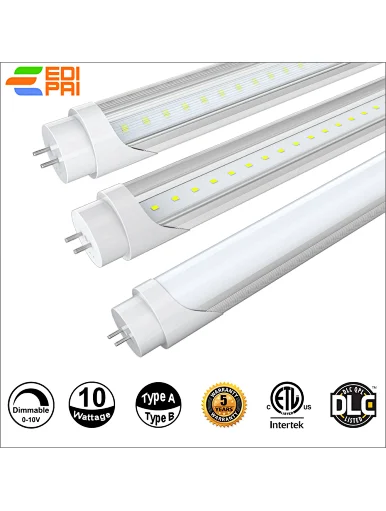

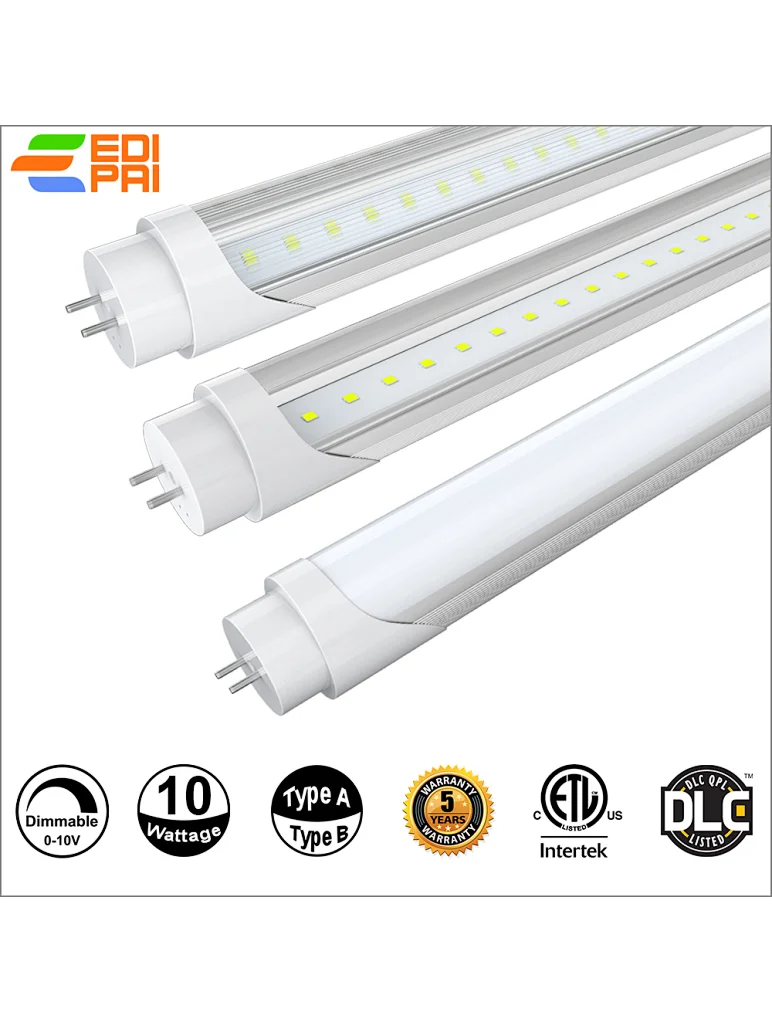

0-10V Dimming T8 LED TUBE LIGHT 4ft 10W Type AB 170lm/W 1700lm

0-10V Dimming T8 LED TUBE 4ft 10W Type AB 170lm/W 1700lm

Model NO. EDI-APT8-4F10-AB 0-10V . . . . . . . . . . . . . . . .

Minimum order quantity: 1

Certification: ETL Type A+B & DLC 5.1
Input Voltage: 100-277 ACV
Powers: 10W PF>0.9 THD<20%
Luminous Efficiency: 170lm/W
Lumens: 1700lm
Housing: AL+PC
Dimming: 0-10V
Warranty: 5 Years
CCT: 3000K/4000K/5000K/6500K Options

Quantity

Product Feature

• Dimming: 0-10V dimming, DLC SSL 5.1 and NCL 4.0 standards.
• All IN One: 3 Powers & 3 CCT Tunable Options.
• Installation: Plug & Play Compatible Electronic Ballast & ballast bypass, Direct wire, Single-End or Double-End Input.
• Construction: Aluminum case and PC lens, Standard colors are white and diffuse.
• LED System: LED system with a life rating of ≥50,000 hours at L70 @25°C. Luminous efficacy >130 lm/W.
• Electrical: 100V-277 ACV. PF≥0.9 and THD≤20%.
• Certification: ETL Listed. DLC SSL5.1 Stander.
• Warranty: Limited 5-Year Warranty.

Dimension

Item	L×W×H (inch)
2FT	24” x 1.12” x 1.28”
4FT	48” x 1.12” x 1.28”

Specifications

		EDI-APT8- 4F10-AB 0-10V	EDI-APT8- 4F12-AB 0-10V	EDI-APT8- 4F15-AB 0-10V	EDI-APT8- 4F18-AB 0-10V	EDI-APT8- 4F20-AB 0-10V	EDI-APT8- 4F22-AB 0-10V
Key parameters	Dimming	0-10V Dimming
	Length	4ft / 48"
	Voltage	100-277 ACV
	Wattage	10W	12W	15W	18W	20W	22W
	Efficacy	170 lm/W	180 lm/W	130 lm/W	130 lm/W	130 lm/W	130 lm/W
	Lumens	1700 lm	1800 lm	1950 lm	2340 lm	2600 lm	2860 lm
	Base	G13
Control Feature	Dimming Status	Continuous Dimming to 10% or below
	Communication Protocol	0-10V Wired Communication Protocol
Photo metric	CCT	3000K-6500K
	SDCM	≤6
	Beam Aagle	120°
	Ra	>80 (>97 Option)
	R9	>0
	Duv	≤0.006
Electrical	Wattage	10W	12W	15W	18W	20W	22W
	Current	Max 0.10A	Max 0.12A	Max 0.15A	Max 0.18A	Max 0.20A	Max 0.22A
	Rated Voltage	100-277 ACV
	Frequency	50/60Hz
	THD	20%
	Surge Protection	2KV
	Power Factor	≥0.9
Lifetime	L70	≥50,000 Hours
	L90	≥36,000 Hours
	Warranty	5 Years
Operation	Start Time	≤1S
	Operating Temp	-4℉+113℉
	Storage Temp	-22℉+149℉
	Environment	Indoor
	Ingress Protection	IP20
Certifications	Safety	ETL
	DLC	DLC 5.1 Standard
Material	Housing	Aluminum
	Optical-Lens	PC Frosted / Clear

Wiring Diagram

Packing / weight

Size	Outer box (LWH)	Qty/Ctn (pcs)	G.W/Ctn (lbs)	Container 20GP(28㎡)	Container 40HQ(68㎡)	Container 45HQ(78㎡)
2ft	24.67.287.28 in 625185185 mm	25	9.3	27000 pcs	78000 pcs	90000 pcs
4ft	48.67.287.28 in 1235185185 mm	25	16.0	1327000 pcs	39600 pcs	45000 pcs

Warranty

This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering or removal of the Q.C. and/or date label, usage in improper working environment or installation not according to the current edition of the National Electric Code. Should this product fail during the warranty period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Manufacturer does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Manufacturer reserves the right to alter specifications without prior notice.

Note

1.The installation and maintenance must be completed by electricians or professionals.
2.Please cut off the power before installation and maintenance.
3.The thermally insulating material is not allowed to cover the fixture.
4.Please keep away from the corrosive substance, and keep the fixture dry and clean.
5.Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.
