Linear High Bay 8ft 82W
Linear High Bay 8ft 82W
Linear High Bay 8ft 82W
Linear High Bay 8ft 82W
Linear High Bay 8ft 82W
Linear High Bay 8ft 82W
Linear High Bay 8ft 82W

Linear High Bay 8ft 82W

Model NO.:
EDI-LS2G-8FT82W
Price:
US $ 10.00-12.00 / pieces
Delivery:
EXW
Minimum order quantity:
500 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
China
Stock Time:
30 Days
Linear High Bay 8ft 82W 130lm/W 10660lm 0-10V Dimming Warranty 5-Years
Quantity:

Product Features

1. Smart Control -- 2.4G wireless Smart APP Dimming&Switch control

2. High Efficacy -- design delivers up to 130-200 LPW

3. Expected Life— Projected life of at least 50,000 hours.

4. Construction — Housing constructed of code-gauge, die-formed, cold-rolled steel.

5. Lens — Frosted, impact-resistant acrylic.

6.  Electrical — 100–277 VAC Input, 50/60 Hz.

7. Driver — High-performance driver features over-voltage, over-current, and short-circuit protection.

8. Certification — ETL Listed. DLC Premium.

9. Warranty — Limited 5-year warranty.

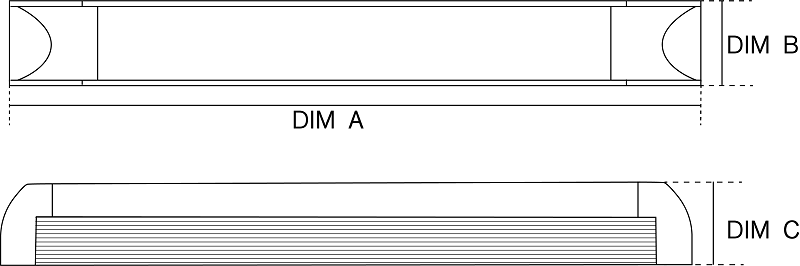

②Dimensions

Length

DIM A

DIM B

DIM C

8FT

92.4 in

1.2 in

1.4 in

Physical Specifications

LS2G-
8FT46W
LS2G-
8FT46W ND
LS2G-
8FT64W
LS2G-
8FT64W ND
LS2G-
8FT72W ND
LS2G-
8FT82W ND
LS2G-
8FT102W ND
LS2G-
8FT126W ND

Key

parameters

Wattage

46W±5%

46W±5%

64W±5%

64W±5%72W±5%82W±5%102W±5%126W±5 %

Efficacy

130lm/W130lm/W

130lm/W

160lm/W

130lm/W

160lm/W

130lm/W

130lm/W

130lm/W

196lm/W

130lm/W

160lm/W

Lumens

5980lm

5980lm

8320lm

10240lm

8320lm

10240lm

9360lm

10660lm

13260lm

20094lm

16380lm

20160lm

DLC PrimaryLinear AmbientLinear Ambient

Linear Ambient

High Bay

Linear Ambient

High Bay

Linear Ambient

High Bay

High Bay

High Bay

Dimming

Smart APP

-

Smart APP

-

-0-10V0-10V0-10V

Accessories

Integrated Occpancy Motion Sensor-Integrated Occpancy Motion Sensor

Photo metric

CCT

3000k-6500K

SDCM

≤6

Beam Angle

140°

Ra

>80

R9

>0

Duv

≤0.006

Electrical

Wattage

46W±5%

46W±5%

64W±5%

64W±5%72W±5%82W±5%102W±5%126W±5%

Current

Max 0.46A

Max 0.46A

Max 0.64A

Max 0.64AMax 0.72AMax 0.82AMax 0.102AMax 0.126A

Rated Voltage

100-277 ACV

Frequency

50/60Hz

THD

≤20%

Surge Protection

2KV

Power Factor

≥0.9

Lifetime

L70

≥50000

L90

≥36000

Warranty

5 Years

Operation

Start Time

≤1S

Operating Temp

-4℉+113℉

Storage Temp

-22℉+149℉

Housing/Case

Aluminum

Optical-Lens

PC Frosted /Clear

Environment

Indoor

Ingress Protection

IP20

Certifications

Safety

ETL

③ Accessories

Integrated 5.8G Occpancy Motion Sensor

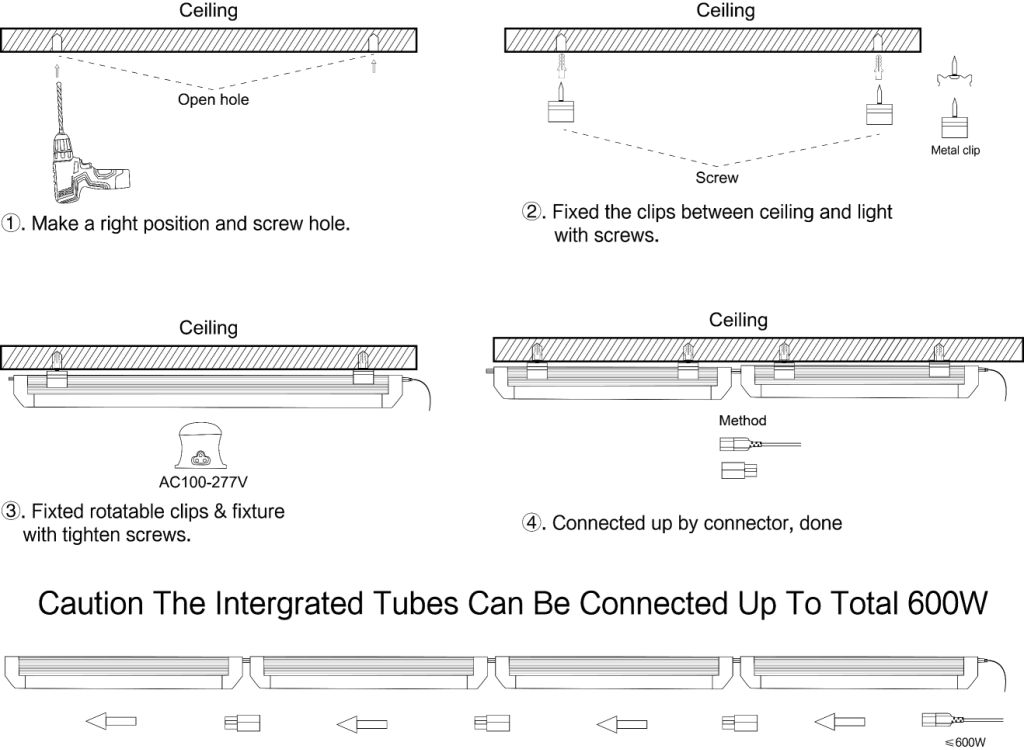

Easy Installation

Important

Read this instruction carefully before installation. Keep it for further reference.

Make electrical and grounded connections in accordance with the national electrical code and any applicable code. Always turn off the power supply before installation.

This product must be installed in accordance with the applicable installation code by a qualified electrician who is familiar with the construction and operation of the product and the hazards involved.

⑤Packing information

Length

Qty/Ctn

(pcs)

Outer box

G.W/Ctn

8ft20

2340*185*175mm

92.1*7.3*6.8 in

12.4KG

27.3LBS

Warranty

  This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering or removal of the Q.C. and/or date label, usage in improper working environment or installation not according to the current edition of the National Electric Code. Should this product fail during the warranty period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Manufacturer does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Manufacturer reserves the right to alter specifications without prior notice.
