① Product Features
|1. High lighting efficiency 130lm/W, Ra>80;|
2. 0-10V dimmable driver, AC100-277V;
3. Reduces energy consumption up to 60%;
5. Suitable for damp location;
6. Surface mounting installation;
7. 5 yeas warranty.

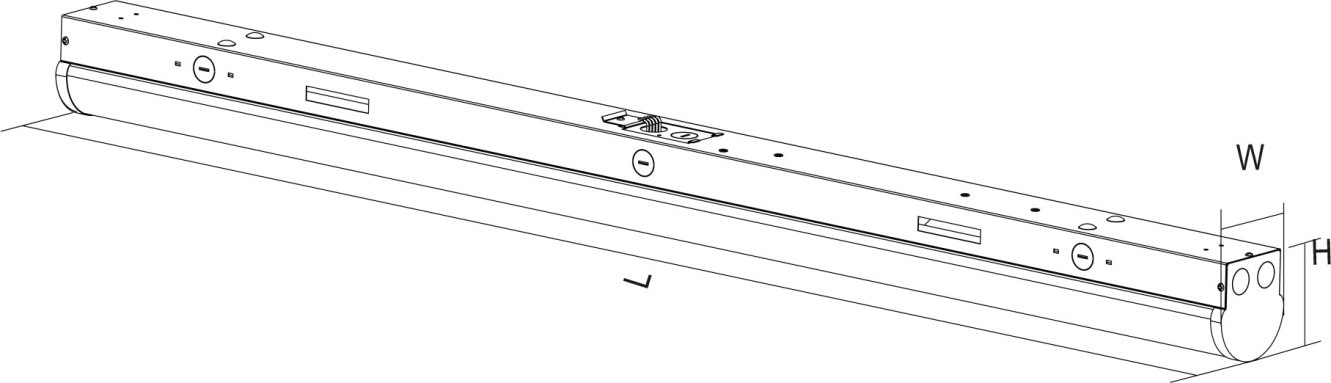

② Product Dimension
|EDI-ST-4FT32W||48” x 3.11” x 3.26”|

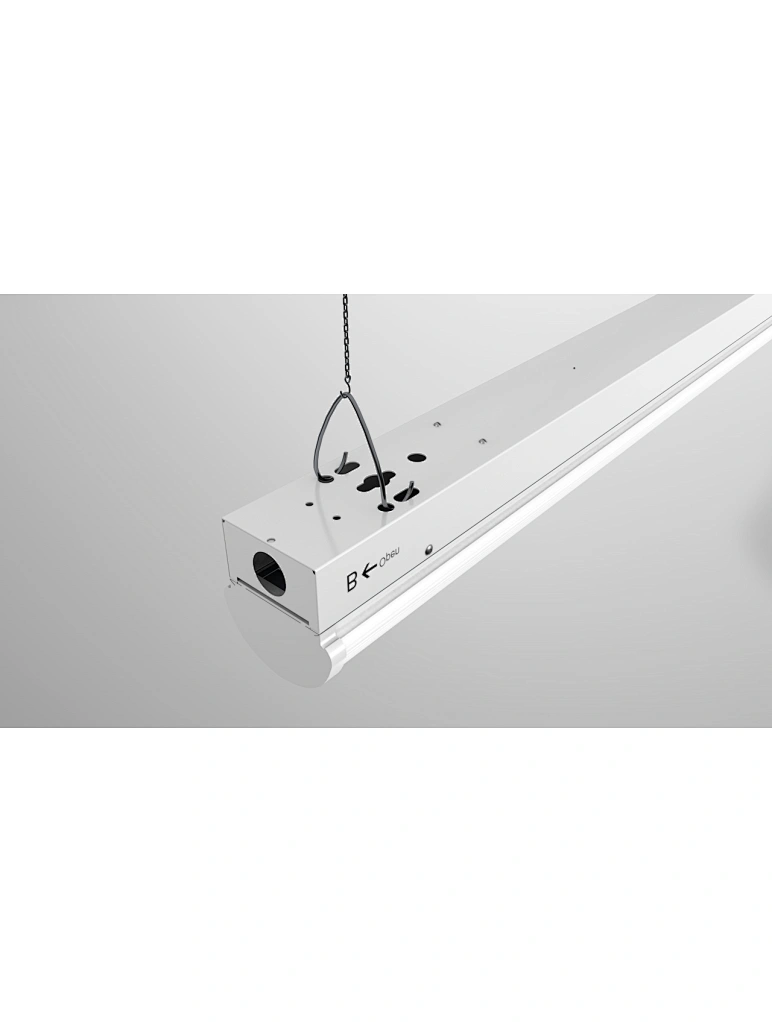

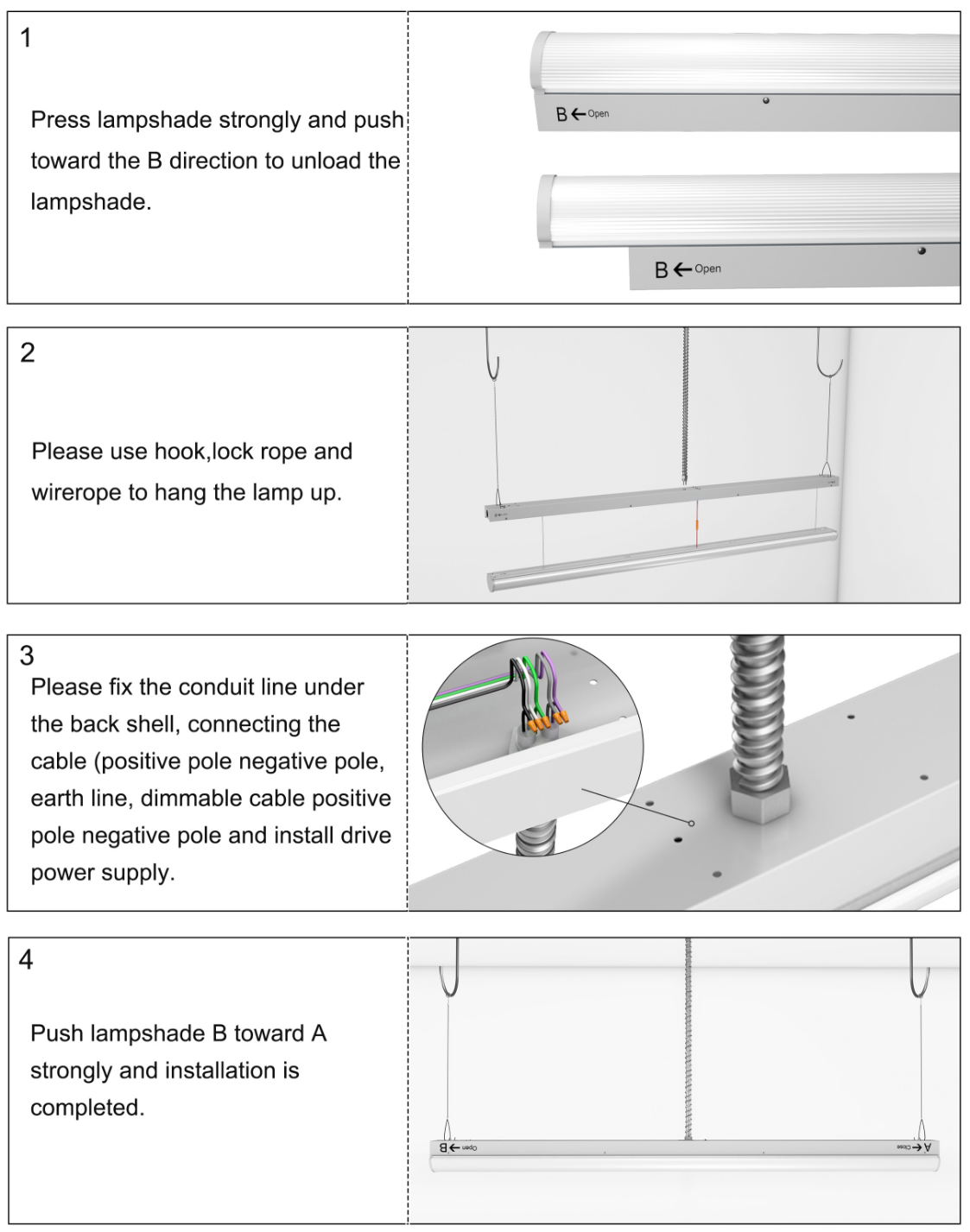

④ Chain Installation

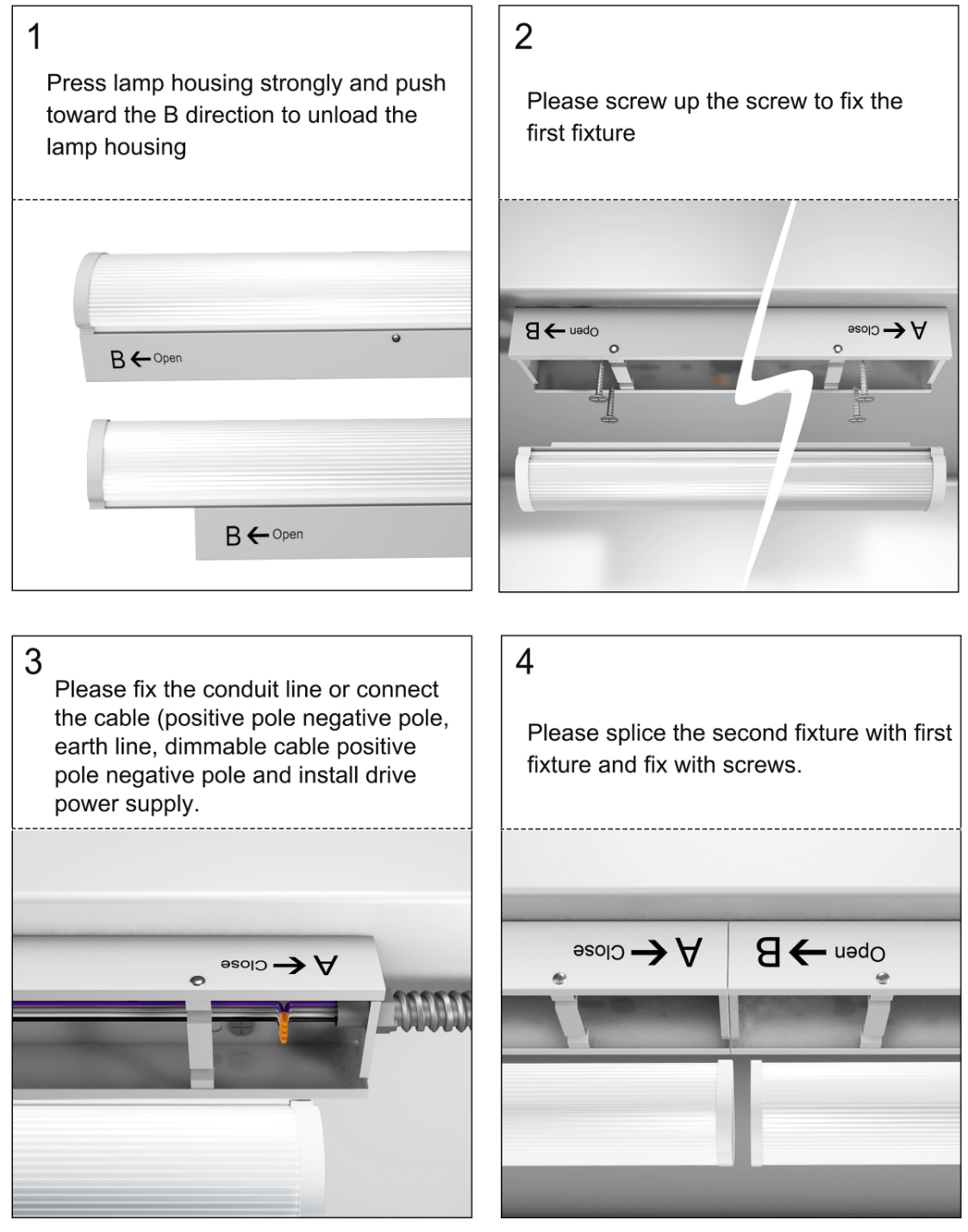

⑤ Surface Mounted Installation
Read this instruction carefully before installation. Keep it for further reference.
Make electrical and grounded connections in accordance with the national electrical code and any applicable code. Always turn off the power supply before installation.
This product must be installed in accordance with the applicable installation code by a qualified electrician who is familiar with the construction and operation of the product and the hazards involved.
⑦ Packing / weight
|4ft||6||52"x 12.8"x 10.4"|
1.The installation and maintenance must be completed by electricians or professionals.
2.Please cut off the power before installation and maintenance.
3.The thermally insulating material is not allowed to cover the fixture.
4.Please keep away from the corrosive substance, and keep the fixture dry and clean.
5.Working temperature: -4°F~104°F, storage temperature: -22°F~140°F.
