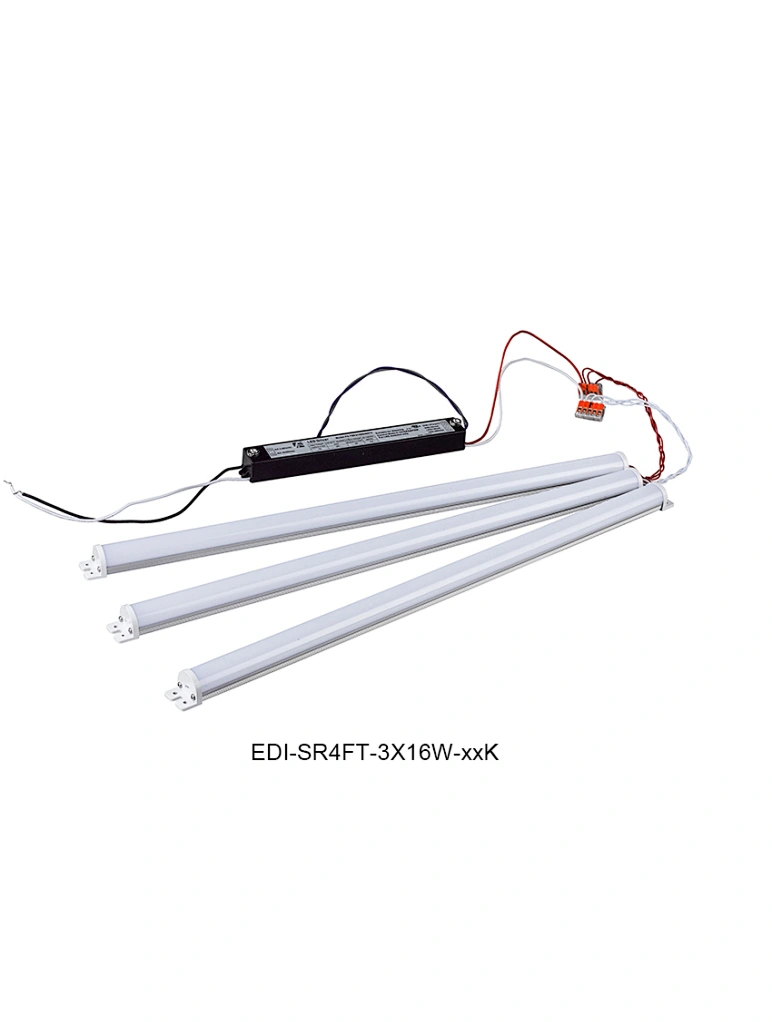

① Product Features
1. Quick and convenient installation with existing luminaire body within 2 or 3 minutes.
2.Mounting method: Magnetic, quick-connect.
3. Ideal for office, retail and other architectural spaces.
4. Luminous Efficiency: 130lm/w Luminaire; 0-10V dimming; PF>0.9;
5. CCT: 3000K-5000K
6. 5 years warranty.
② Product Dimension
| Model | 4FT | |
| Size (inch) | L | 44.49 |
| W | 0.99 | |
| H | 0.98 | |
| Power | 48W |
| Driver Size L X W X H (inch) | 9.72 X 1.2 X 0.91 |
③ Specification
| Part No. | Length | QTY LED Strip | Power | Luminous Flux | Luminous Efficacy | Input Voltage | Ra | PF | Warranty | Certificate |
| EDI-SR2ft-3x12W | 4ft | 3 | 36w | 4680lm | 130lm/W | AC100-277V 347ACV | >80 | >0.9 | 7 Years | ETL&DLC |
| EDI-SR2ft-3x14W | 4ft | 3 | 42w | 5460lm | ||||||
| EDI-SR2ft-3x16W | 4ft | 3 | 48w | 6240lm |
④ Testing Report
⑤ Installation
⑥ Packing / weight
| Size | Outer box (L*W*H) | Qty/Ctn (pcs) | N.W/pcs (lbs) | G.W/Ctn (lbs) |
| 4ft | 48.8’’ * 14.37’’ * 7.09’’ 1240 * 365 * 180mm | 45 | 27 | 29.2 |
⑦ Warning
1.This product can be directly installed in the grille lamp panel, which can replace fluorescent tubes.
2.The whole installation or maintenance process must be operated by a professional electrician.
3.The installation or maintenance process need to disconnect the power supply to prevent electric shock.
4.This product is not suitable for use in the humid environment.
5.This product cannot be covered be covered with thermal insulation materials.
6.Away from corrosive substances, and keep dry and clean.
7.This product is only suitable for installation in the iron grille lamp.
