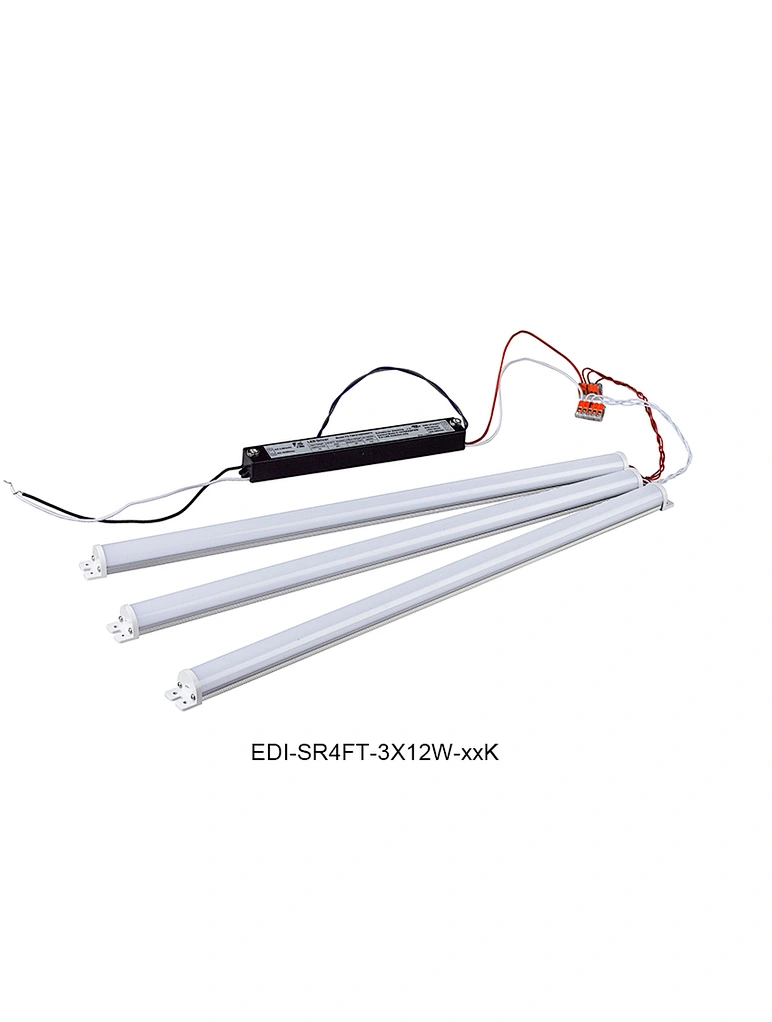

EDI-SR4FT-3X12W-xxK

EDIPAI Troffer Retrofit Kit Strip Fixtures Retrofit Kit 0-10V Diming

EDI-SR4FT-3X12W-xxK

price

US $20.00 - US $35.00 / pieces

Model NO. EDI-SR4FT-3X12W-xxK

Delivery FOB

minimum order 500 pieces

Supply Ability 5000pieces / Day

Country of Origin China

Stock Time 30Day

EDIPAI 4ft 36W LED Magnetic Strip Retrofit Kit 0-10V Dimming 7-Years Warranty

Quantity

① Product Features
1. Quick and convenient installation with existing luminaire body within 2 or 3 minutes.
2.Mounting method: Magnetic, quick-connect.
3. Ideal for office, retail and other architectural spaces.
4. Luminous Efficiency: 130lm/w Luminaire; 0-10V dimming; PF>0.9;
5. CCT: 3000K-5000K
6. 5 years warranty.

② Product Dimension

Model		2FT	4FT
Size (inch)	L	22.45	44.49
	W	0.99	0.99
	H	0.98	0.98

Power	16W-42W	48W
Driver Size L X W X H (inch)	7 X 1.2 X 0.91	9.72 X 1.2 X 0.91

③ Specification

Part No.	Length	QTY LED Strip	Power	Luminous Flux	Luminous Efficacy	Input Voltage	Ra	PF	Warranty	Certificate
EDI-SR2ft-2x8W	2ft	2	16w	2080lm	130lm/W	AC100-277V	>80	>0.9	5 Years	ETL&DLC
EDI-SR2ft-3x8W	2ft	3	24w	3120lm
EDI-SR2ft-4x8W	2ft	4	32w	4160lm
EDI-SR2ft-2x10W	2ft	2	20w	2600lm
EDI-SR2ft-3x10W	2ft	3	30w	3900lm
EDI-SR2ft-4x10W	2ft	4	40w	5200lm
EDI-SR2ft-2x12W	2ft	2	24w	3120lm
EDI-SR2ft-3x12W	2ft	3	36w	4680lm
EDI-SR2ft-4x12W	2ft	4	48w	6240lm
EDI-SR2ft-2x12W	4ft	2	24w	3120lm	130lm/W	AC100-277V	>80	>0.9	5 Years	ETL&DLC
EDI-SR2ft-3x12W	4ft	3	36w	4680lm
EDI-SR2ft-4x12W	4ft	4	48w	6240lm
EDI-SR2ft-2x14W	4ft	2	28w	3640lm
EDI-SR2ft-3x14W	4ft	3	42w	5460lm
EDI-SR2ft-4x14W	4ft	4	56w	7280lm
EDI-SR2ft-2x16W	4ft	2	32w	4160lm
EDI-SR2ft-3x16W	4ft	3	48w	6240lm
EDI-SR2ft-2x18W	4ft	2	36w	4680lm
EDI-SR2ft-2x20W	4ft	2	40w	5200lm

④ Testing Report

⑤ Installation

⑥ Packing / weight

Size	Outer box *(LWH)*	Qty/Ctn (pcs)	N.W/pcs (lbs)	G.W/Ctn (lbs)
2ft	24.8’’ * 14.37’’ * 7.09’’ 630 * 365 * 180mm	45	15	17.2
4ft	48.8’’ * 14.37’’ * 7.09’’ 1240 * 365 * 180mm	45	27	29.2

⑦ Warning
1.This product can be directly installed in the grille lamp panel, which can replace fluorescent tubes.
2.The whole installation or maintenance process must be operated by a professional electrician.
3.The installation or maintenance process need to disconnect the power supply to prevent electric shock.
4.This product is not suitable for use in the humid environment.
5.This product cannot be covered be covered with thermal insulation materials.
6.Away from corrosive substances, and keep dry and clean.
7.This product is only suitable for installation in the iron grille lamp.
