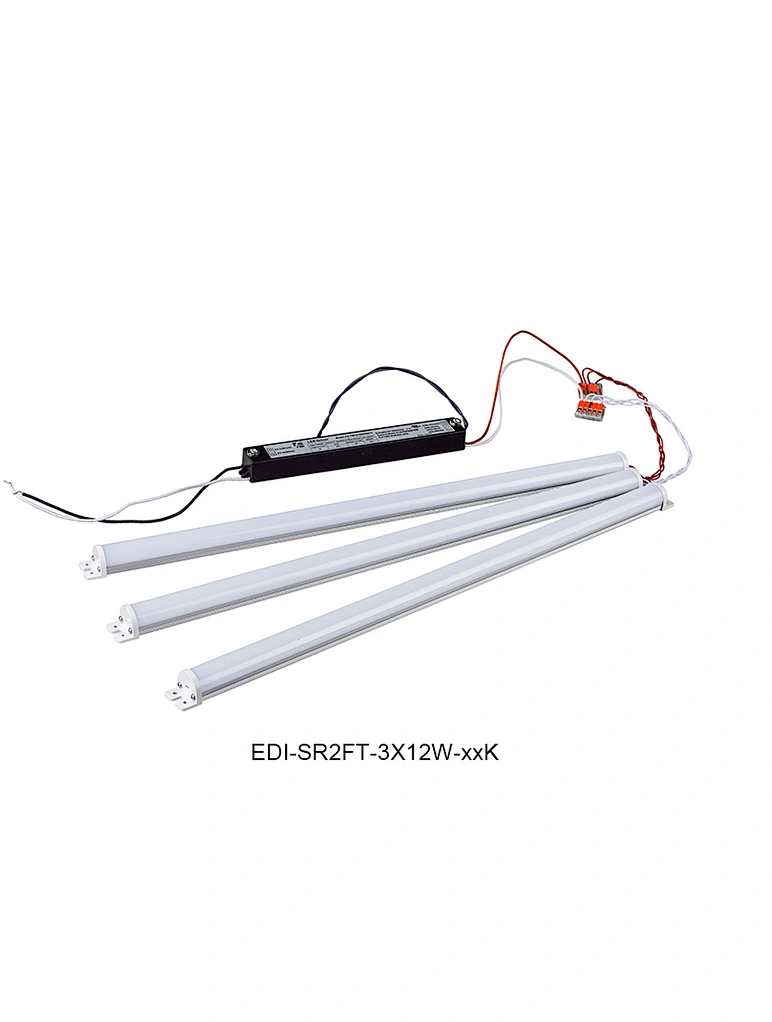

EDI-SR2FT-3X12W-xxK
EDI-SR2FT-3X12W-xxK

EDI-SR2FT-3X12W-xxK

Model NO.:
EDI-SR2FT-3X12W-xxK
Price:
US $ 20.00-35.00 / pieces
Delivery:
FOB
Minimum order quantity:
500 pieces
Supply Ability:
5000 pieces / Day
Country of Origin:
China
Stock Time:
30 Days
EDIPAI LED Magnetic Strip Retrofit Kit 2ft 36W 130lm/W 4680lm 0-10V Dimming 7-Years Warranty

 Product Features
1. Quick and convenient installation with existing luminaire body within 2 or 3 minutes.
2.Mounting method: Magnetic, quick-connect.
3. Ideal for office, retail and other architectural spaces.
4. Luminous Efficiency: 130lm/w Luminaire; 0-10V dimming; PF>0.9;
5. CCT: 3000K-5000K
6. 5 years warranty.


 Product Dimension

Model2FT
Size
(inch)
L22.45
W0.99
H0.98
Power16W-42W
Driver Size
L X W X H
(inch)
7 X 1.2 X 0.91


 Specification



Part No.LengthQTY
LED Strip
PowerLuminous
Flux
Luminous
Efficacy
Input
Voltage
RaPFWarrantyCertificate
EDI-SR2ft-3x8W2ft324w3120lm130lm/W

AC100-277V

347ACV

>80>0.97 YearsETL&DLC
EDI-SR2ft-3x10W2ft330w3900lm
EDI-SR2ft-3x12W2ft336w4680lm


 Testing Report




 Installation



  Packing / weight

SizeOuter box
(L*W*H)
Qty/Ctn
(pcs)
N.W/pcs
(lbs)
G.W/Ctn
(lbs)
2ft24.8’’ * 14.37’’ * 7.09’’
630 * 365 * 180mm
451517.2




 Warning
1.This product can be directly installed in the grille lamp panel, which can replace fluorescent tubes.
2.The whole installation or maintenance process must be operated by a professional electrician.
3.The installation or maintenance process need to disconnect the power supply to prevent electric shock.
4.This product is not suitable for use in the humid environment.
5.This product cannot be covered be covered with thermal insulation materials.
6.Away from corrosive substances, and keep dry and clean.
7.This product is only suitable for installation in the iron grille lamp.
