EDI-SR2FT-3X10W-xxK
price
US $20.00 - US $35.00 / pieces
EDI-SR2FT-3X10W-xxK
FOB
500 pieces
5000pieces / Day
China
30Day

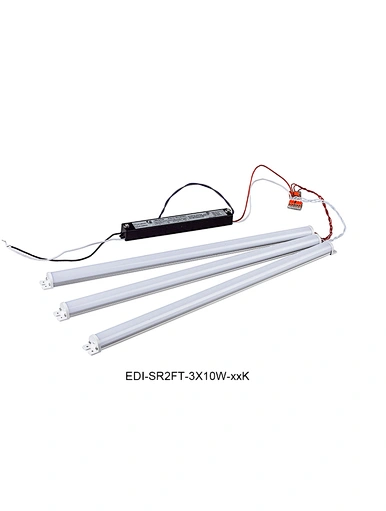

EDIPAI LED Magnetic Strip Retrofit Kit 2ft 30W 130lm/W 3900lm 0-10V Dimming 7-Years Warranty
Quantity
① Product Features
1. Quick and convenient installation with existing luminaire body within 2 or 3 minutes.
2.Mounting method: Magnetic, quick-connect.
3. Ideal for office, retail and other architectural spaces.
4. Luminous Efficiency: 130lm/w Luminaire; 0-10V dimming; PF>0.9;
5. CCT: 3000K-5000K
6. 5 years warranty.
② Product Dimension
| Model | 2FT | |
| Size (inch) | L | 22.45 |
| W | 0.99 | |
| H | 0.98 | |
| Power | 16W-42W |
| Driver Size L X W X H (inch) | 7 X 1.2 X 0.91 |
③ Specification
| Part No. | Length | QTY LED Strip | Power | Luminous Flux | Luminous Efficacy | Input Voltage | Ra | PF | Warranty | Certificate |
| EDI-SR2ft-3x8W | 2ft | 3 | 24w | 3120lm | 130lm/W | AC100-277V 347ACV | >80 | >0.9 | 7 Years | ETL&DLC |
| EDI-SR2ft-3x10W | 2ft | 3 | 30w | 3900lm | ||||||
| EDI-SR2ft-3x12W | 2ft | 3 | 36w | 4680lm |
④ Testing Report
⑤ Installation
⑥ Packing / weight
| Size | Outer box (L*W*H) | Qty/Ctn (pcs) | N.W/pcs (lbs) | G.W/Ctn (lbs) |
| 2ft | 24.8’’ * 14.37’’ * 7.09’’ 630 * 365 * 180mm | 45 | 15 | 17.2 |
