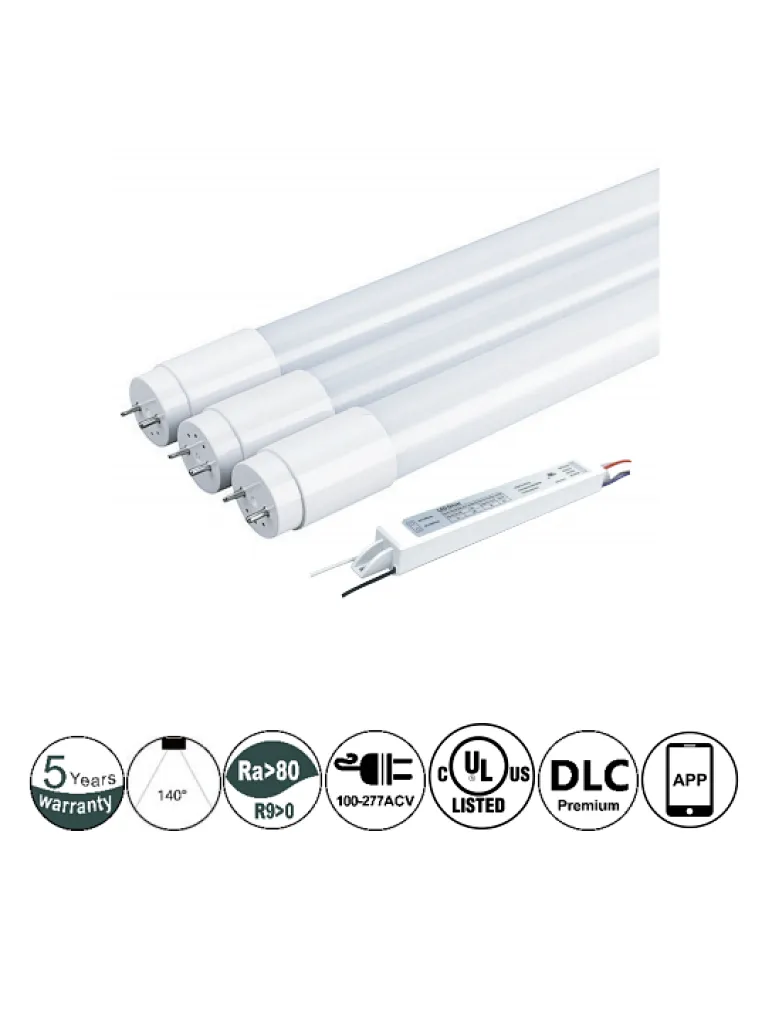

LED T8 TUEB Type C 1 Lamp 15W Total Power 15W 130lm/W 1950lm 5-Years Waraatny

EDI LED T8 TUBE 1 Lamp 15W Total Power 15W Type C

price

US $3.00 - US $8.00

Model NO. EDI-T8-4FT-NPT-AA 15W

Delivery: EXW

Minimum order quantity: 1000

Supply Ability: 10000 / Day

Country of Origin: China

Stock Time: 30Day

LED T8 TUEB Type C 1 Lamp 15W Total Power 15W 130lm/W 1950lm 5-Years Waraatny

Quantity

Product Features

1. Smart Control -- 2.4G wireless Smart APP Dimming&Switch control

2. Better heat dissipation compared with tubes with integrated drivers. Better heat dissipation ensures longer lifespan.

3. Super brightness SMD LED-2835 with big LED chip for ensuring high lumen and long lifespan.

4. Premium optical cover made from new materials.Strong and no deformation under high ambient temperature.

5. Super insulating power. Hi-pot test-4KV passed. External driver with low and safe voltage output.

6. Soft,uniform,and no glare; Environmentally friendly.

Order Information

Part No.	Length	Total Power	Lamp Qty	Driver Qty	CRI	Luminous Flux	Luminous Efficacy	Input Voltage	Viewing Angle	Certificate
EDI-T8-4FT-NPT-AA 12W	4ft	12W	1	1	Ra >80	1800lm	150lm/w	100-277ACV	120°	UL DLC
EDI-T8-4FT-NPT-AA 15W		15W	1	1		1950 lm	130lm /W	100-277ACV	120°	UL DLC
EDI-T8-4FT-NPT-BB 24W		24W	2	1		3600 lm	150lm/w	100-277ACV	120°	UL DLC
EDI-T8-4FT-NPT-BB 30W		30W	2	1		3900 lm	130lm /W	100-277ACV	120°	UL DLC
EDI-T8-4FT-NPT-CC 30W		30W	3	1		4500 lm	150lm/w	100-277ACV	120°	UL DLC
EDI-T8-4FT-NPT-CC 36W		36W	3	1		4680 lm	130lm /W	100-277ACV	120°	UL DLC
EDI-T8-4FT-NPT-DD 40W		40W	4	1		6000 lm	150lm/w	100-277ACV	120°	UL DLC
EDI-T8-4FT-NPT-DD 48W		48W	4	1		6240 lm	130lm /W	100-277ACV	120°	UL DLC

Specifications

		EDI-T8-4FT- NPT-AA 12W	EDI-T8-4FT- NPT-AA 15W	EDI-T8-4FT- NPT-BB 24W	EDI-T8-4FT- NPT-BB 30W	EDI-T8-4FT- NPT-CC 30W	EDI-T8-4FT- NPT-CC 36W	EDI-T8-4FT- NPT-DD 40W	EDI-T8-4FT- NPT-DD 48W
Key parameters	Length	4ft / 48”		4ft / 48”		4ft / 48”		4ft / 48”
	Voltage	100-277ACV		100-277ACV		100-277ACV		100-277ACV
	Wattage	12W±5%	15W±5%	24W±5%	30W±5%	30W±5%	36W±5%	40W±5%	48W±5%
	Efficacy	150 lm/W	130 lm/W	150 lm/W	130 lm/W	150 lm/W	130 lm/W	150 lm/W	130 lm/W
	Lumens	1800 lm	1950 lm	3600 lm	3900 lm	4500 lm	4680 lm	6000 lm	6240 lm
	Lamp Qty	1		2		3		4
	Drive Qty	1		1		1		1
Photo metric	CCT	3000K-6500K
	SDCM	≤6
	Beam Angle	120°
	Ra	>80 or >97
	R9	>0
	Duv	≤ 0.006
Electrical	Wattage	12W±5%	15W±5%	24W±5%	30W±5%	30W±5%	36W±5%	40W±5%	48W±5%
	Current	Max 0.12A	Max 0.15A	Max 0.24A	Max 0.30A	Max 0.30A	Max 0.36A	Max 0.40A	Max 0.48A
	Rated Voltage	100-277ACV
	Frequency	50/60Hz
	THD	≤ 20%
	Surge Protection	2KV
	Power Factor	≥ 0.9
Lifetime	L70	≥ 50000
	L90	≥ 36000
	Warranty	5 Years
Operation	Start Time	≤ 1S
	Operating Temp	-4℉+113℉
	Storage Temp	-22℉+149℉
	Housing/Case	Aluminium
	Optical-Lens	PC Frosted /Clear
	Environment	Indoor
	Ingress Protection	IP20
Certifications	Safety	UL
	DLC	DLC

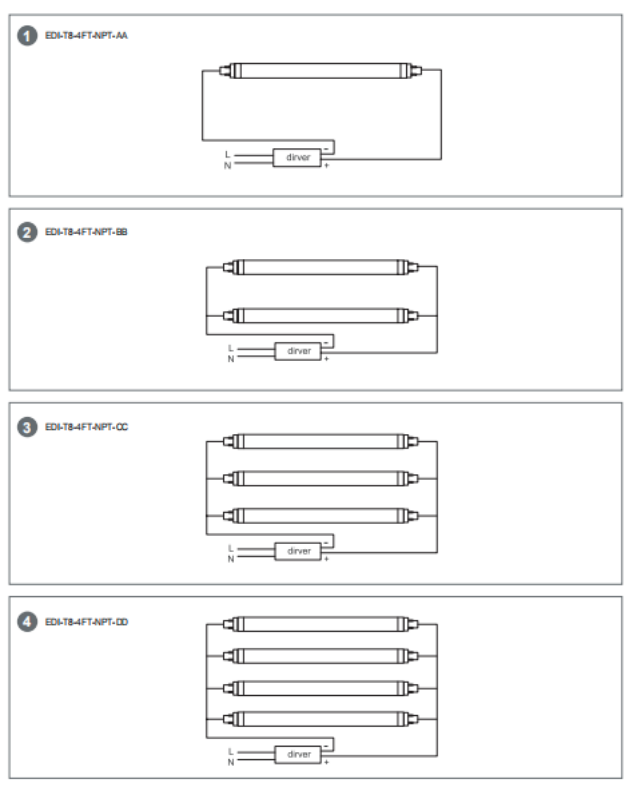

Wiring Diagram

Packing information

Module	Length	Qty/Ctn (pcs)	Outer box (in)	G.W/Ctn (lbs.)
EDI-T8-4FT-NPT-AA 12W	4ft	12 Lamps 12 Drivers	1235 x 210 x 130 mm 48.6 x 8.3 x 5.1 in	5KG 11 Lbs
EDI-T8-4FT-NPT-AA 15W
EDI-T8-4FT-NPT-BB 24W		24 Lamps 12 Drivers	1235 x 210 x 210 mm 48.6 x 8.3 x 8.3 in	7KG 15.5 Lbs
EDI-T8-4FT-NPT-BB 30W
EDI-T8-4FT-NPT-CC 30W		24 Lamps 8 Drivers	1235 x 210 x 210 mm 48.6 x 8.3 x 8.3 in	6.4KG 14.1 Lbs
EDI-T8-4FT-NPT-CC 36W
EDI-T8-4FT-NPT-DD 40W		24 Lamps 6 Drivers	1235 x 210 x 210 mm 48.6 x 8.3 x 8.3 in	6.1KG 13.5 Lbs
EDI-T8-4FT-NPT-DD 48W

Warranty

This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering or removal of the Q.C. and/or date label, usage in improper working environment or installation not according to the current edition of the National Electric Code. Should this product fail during the warranty period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Manufacturer does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Manufacturer reserves the right to alter specifications without prior notice.
