①Product Features |

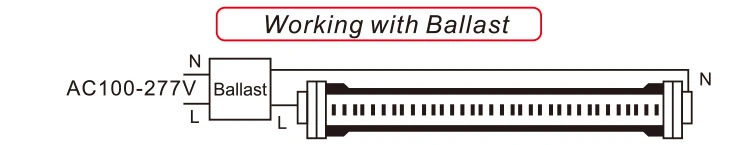

1. Plug & Play Compatible electronic ballast Double-End Input.
2. Very high-power efficiency 180lm/W and high CRI which can reach above 80.
3.Nano meter material with light weight and strong hardness.
4. Optimum light uniformity and high color homogeneity.
5. Overpower, short and open circuit protected.
6. Long lifetime: 50,000 hours with 5 years warranty.
7. NO noise, NO UV and IR, Mercury-free and RoHS compliant.
8. Comply with CE, FCC, Ul and DLC standards.
9. Fire - resisting sleeves: UL94 V0 level, high temperature resistant, thermal-insulation, inflaming retarding. |
②Physical Specifications |
Module | EDI-FPT8-4F15-A | Length | 1200mm/4ft | Weight | 130g | Housing | NANO | Lens | Milky | Tube Diameter | 26mm | Base Type | G13 | Work Environment | Indoor use |
|
③Electrical Specifications |
Module | EDI-FPT8-4F15-A | LED Quantity | 96 | Power Consumption | 15W±1W | Input Voltage | By Ballast | Driver | Internal driver | Power Factor | >0.95 | Light Source | SMD 2835 | Operation Temperature | -20~40 °C |
|
④Optical Specifications |
| Module | EDI-FPT8-4F15-A | | Power Consumption | 15W±1W | | Lumens | 1950lm | | Luminous Efficiency | 130lm/W | | Certificate | UL DLC | | Color Temperature | 3000K, 4000K, 5000K, 6000K, 6500K | | CRI | >80 | | Beam Angle | 270 Degree |
|
⑤Installation Guide |

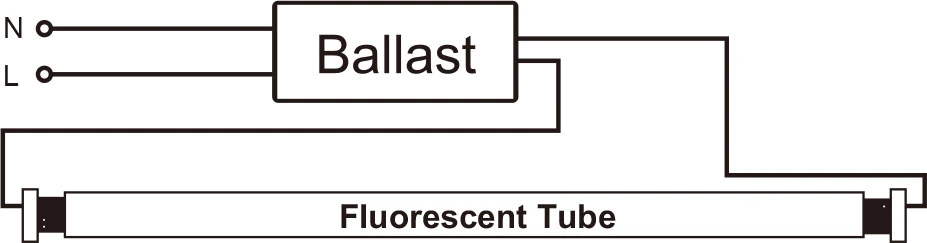

“Plug” and “Play” procedure
1. Turn off the power to the light fixture at the breaker panel before installation.
2. Open the diffuser from the light fixture.
3. Remove the fluorescent tubes. Please dispose of these items properly as they contain mercury.
4. Put led tube into the lighting fixture.
5. Install the LED tubes, close the diffuser. 6. Turn on the Power. |
⑥Packing / weight |
Module | Qty/Ctn (pcs) | Outer box (in) | G.W/Ctn (lbs.) | EDI-FPT8-4F15-A | 25 | 48.60 x 7.30 x6.70 | 9.3 |
|
⑦ Packing / weight |
| This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use, installation, tampering or removal of the Q.C. and/or date label, usage in improper working environment or installation not according to the current edition of the National Electric Code. Should this product fail during the warranty period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Manufacturer does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Manufacturer reserves the right to alter specifications without prior notice. |
